GK BLOCK - FOUNDATION ISOLATION SYSTEM



(Click to see GK Isolator)


Click here for GK Block Technical Data Sheet - PDF Format



Low Frequency Foundation Block


The Novibra GK Block is specifically used for isolating equipment where low interfering frequencies are encountered. They are typically used under concrete foundations supporting either source or sensitive machines. The highly specialized rubber compounds used, unique geometrical shape, and carefully controlled load deflection characteristic make the GK Block an excellent lower cost alternative to installations normally required to reach system natural frequencies as low as 4Hz. GK Blocks are rated from 4,000 to 18,000 lbs.
Printable Copy

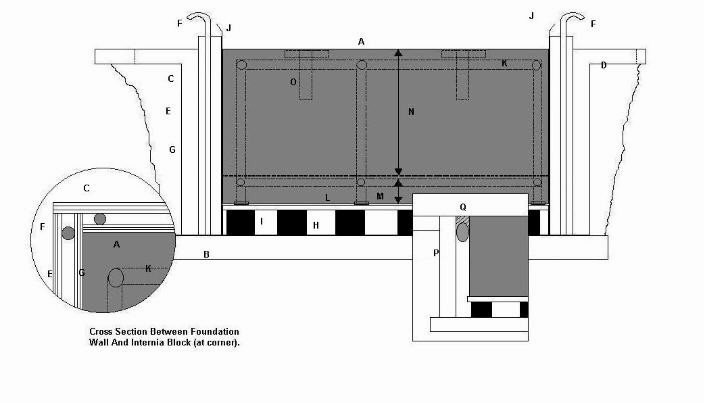

DETAILS:
A) INERTIA BLOCK
B) MUD SLAB
C)
FOUNDATION WALLS
D)
BACK FILL / FINISHED FLOOR
E)
1/2" PLYWOOD
F)
1/2" DIA. RODS
G)
3/4" PLYWOOD
H)
ISOLATION PADS OR BLOCKS
 I )
3/4" PLYWOOD
J)
HEAVY DUTY POLY SHEETING
K)
REBAR
L)
BLOCKS UNDER REBAR
M)
INITIAL CONCRETE POUR FOR INERTIA BLOCK
N)
FINAL PORTION OF CONCRETE POUR
O)
ANCHORING OR LEVELLING DEVICES
P)
FOAM BACKER ROD
Q)
V-100 EPOXY JOINT FILLER
