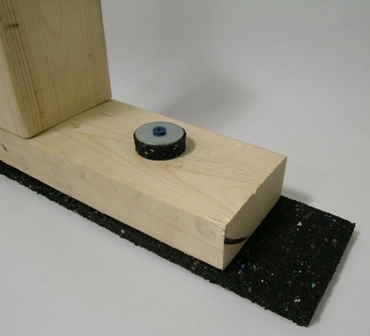

Isolate the top and bottom of wood or steel Stud Partition with Iso-sill and Iso-sill Anchor Isolators (Model ISW)
Concrete Partitions, poured or block can be isolated as well. (observe maximum loadings).
ISO-SILL Acoustic Isolation Pads acts like a permanently resilient gasket used to reduce sound and vibration transfer through the building structures. Iso-sill can be used for wood and steel framing, or for concrete block or pour.
Iso-sill is manufactured with re-claimed rubber and is formulated with high damping acrylic polymers making it a “Green” product for LEED projects. The Iso-sill pad is manufactured to carefully controlled density standards for trusted long term service. Iso-sill is impervious to water, most chemicals and temperature change. Iso-sill will not rot or support mold.
Iso-sill can be installed with mechanical fasteners, polyurethane based construction adhesives, or a variety of thin-sets and mortars. Iso-sill anchor washers are available.
Each roll is 30' long. Standard Stock Widths: 1-1/2", 2", 3-1/4" and 5-1/4" Special cut widths available upon request.
