SAW Vibration Mount

Novibra SAW
The SAW Mount consists of a cylindrical shaped rubber section with integrally bonded interleaf metal plates which are bonded to two square heavy duty outer metal fixing plates. Designed for larger compressive thrust forces with minium deformation, while providing low shear stiffness rates.

Click here for NOVIBRA SAW Technical Data Sheet

• CRUSHERS BALL MILLS • GRINDERS • GRANULATOR
• MIXING & PROCESSING EQUIPMENT

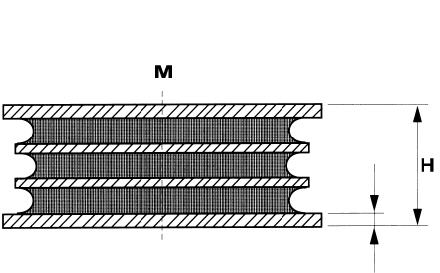

Type	A	K	H	d	t	Weight (Kg)	M-Max (Kg)
Type	A	K	H	d	t	Weight (Kg)	A	B
SAW 125	118	148	52	13.5	5	2.6	2250	4500
SAW 150	136	166	63	13.5	6	4.1	3750	7500
SAW 200	184	220	82	17	8	9.2	6000	12000
SAW 300	270	310	120	22	10	27.0	15000	30000

*Dimensions are in mm.

The SAW Mount is a versatile high performance antivibration mounting.
Installation is easy due to only 4 clearance holes in each fixing plate.

Click here for NOVIBRA SAW Technical Data Sheet - PDF Format
